OSG
#10-32 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 2918808
MFR# 2918808Series 290
$28.83List $36.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingTiCN
Description

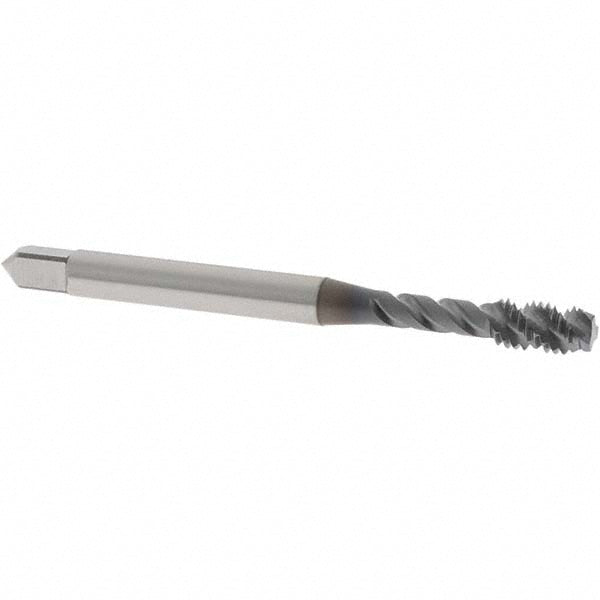

The OSG 2918808 is a #10-32 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.251
Number of flutes3
Overall length in2-3/8
OversizeYes
Shank diameter0.381
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.326
Thread limitH5
Thread size in#10-32
Thread standardUNF
