1/2-20 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2927601
MFR# 2927601Series 290
$64.13List $82.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingSteam Oxide
Description

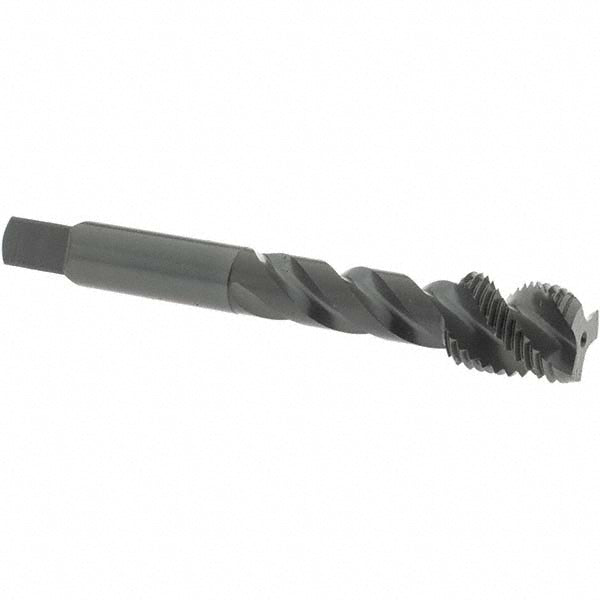

The OSG 2927601 is a 1/2-20 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.933
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.367
Square length0.4375
Square size0.275
Threads per inch20
Thread directionRight Hand
Thread length0.614
Thread limitH2
Thread size in1/2-20
Thread standardUNF
