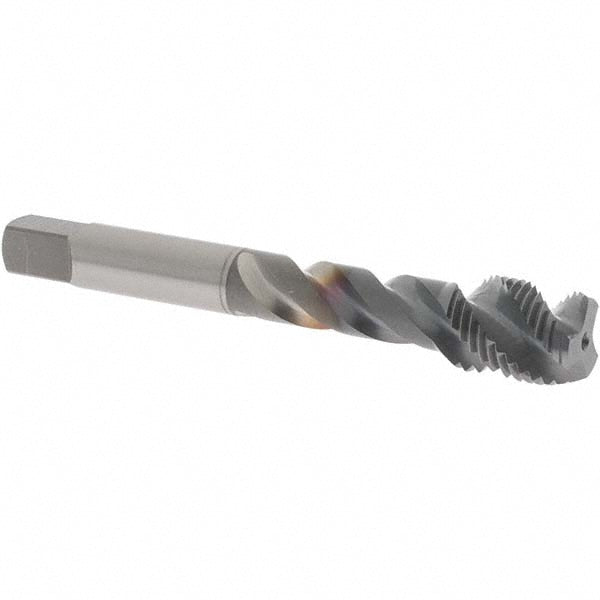

1/2-20 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 2927608
MFR# 2927608Series 290
$72.47List $92.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingTiCN
Description
The OSG 2927608 is a 1/2-20 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.125
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.318
Square length0.4375
Square size0.275
Threads per inch20
Thread directionRight Hand
Thread length0.614
Thread limitH2
Thread size in1/2-20
Thread standardUNF
