OSG

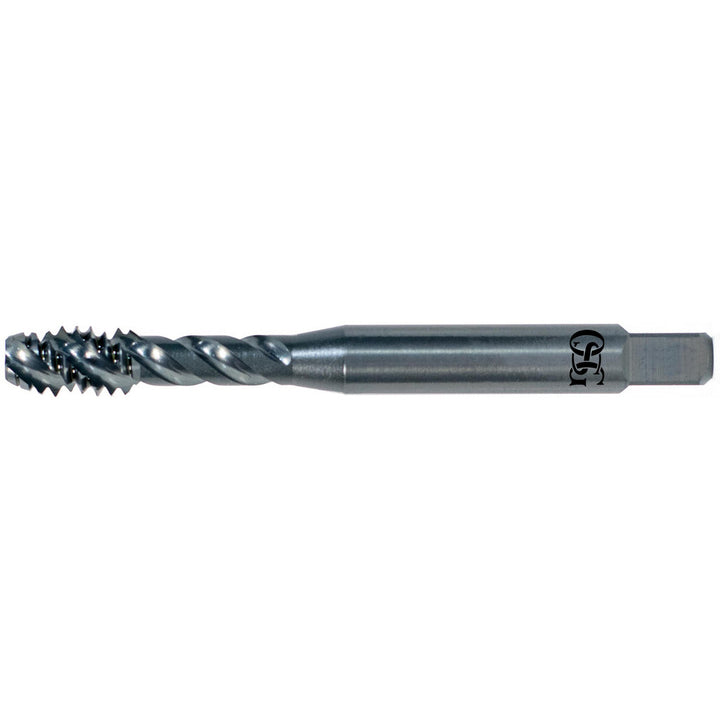

5/16-24 UNF Vanadium High-Speed Steel Tap - OSG 2931200
MFR# 2931200Series 290
$31.32List $40.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
Description
The OSG 2931200 is a 5/16-24 UNF Vanadium High-Speed Steel tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.1250
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square length0.3750
Square size0.2380
Threads per inch24
Thread directionRight Hand
Thread length0.4440
Thread limitH3
Thread size in5/16-24
Thread standardUNF
