OSG

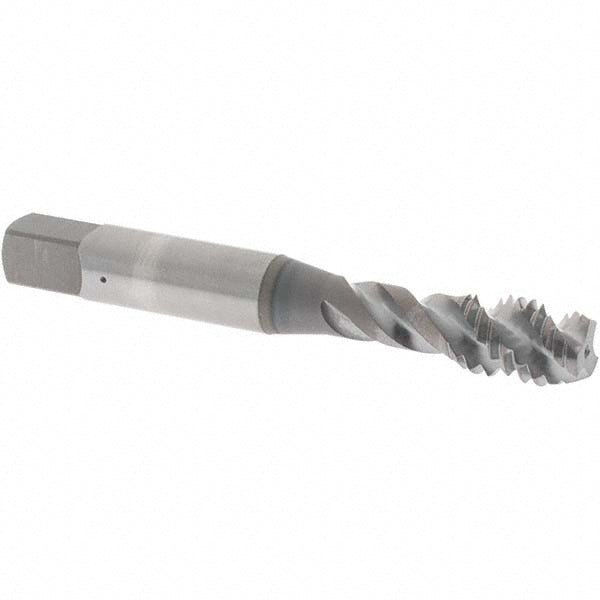

3/8-16 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2931608
MFR# 2931608Series 290
$44.76List $57.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The OSG 2931608 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)31.8
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread limitH3
Thread size in3/8-16
Thread standardUNC
