OSG

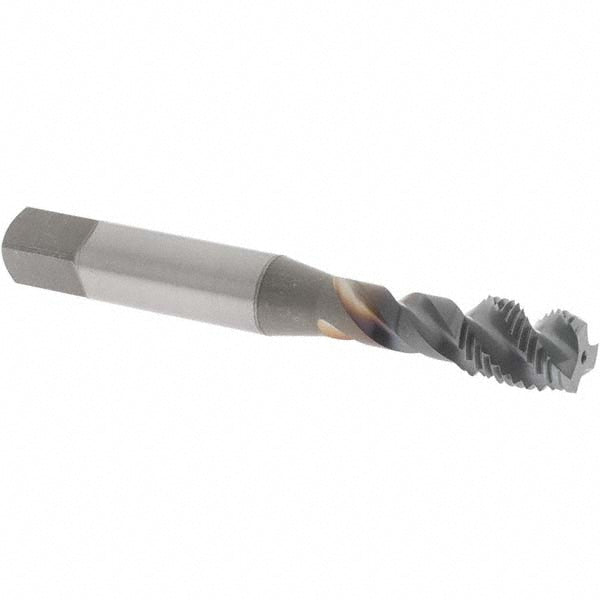

3/8-24 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 2931808
MFR# 2931808Series 290
$44.76List $57.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingTiCN
Description
The OSG 2931808 is a 3/8-24 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length2.429
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.59
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.5
Thread limitH3
Thread size in3/8-24
Thread standardUNF
