OSG

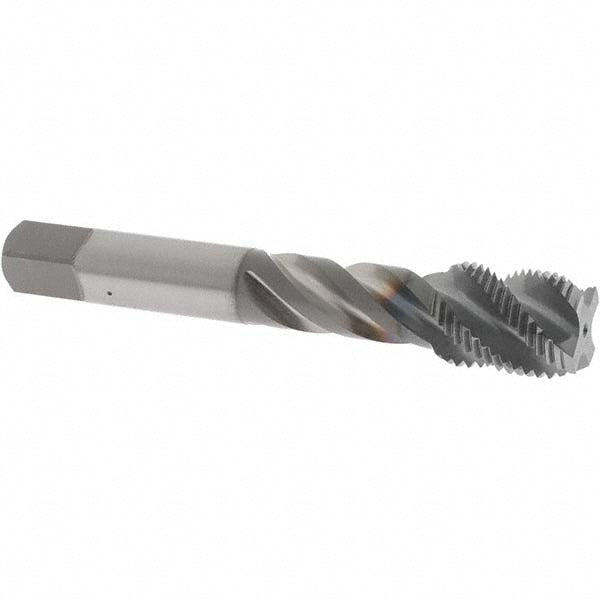

5/8-18 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 2933408
MFR# 2933408Series 290
$129.32List $165.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
CoatingTiCN
Description
The OSG 2933408 is a 5/8-18 UNF Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length2.654
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.697
Square length0.5625
Square size0.36
Threads per inch18
Thread directionRight Hand
Thread length0.728
Thread limitH3
Thread size in5/8-18
Thread standardUNF
