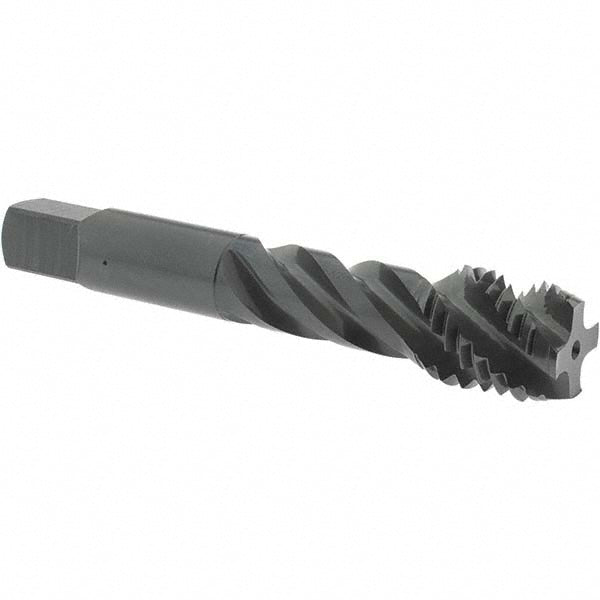

3/4-10 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2933601
MFR# 2933601Series 290
$145.24List $186.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingSteam Oxide
Description
The OSG 2933601 is a 3/4-10 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length2.433
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Threads per inch10
Thread directionRight Hand
Thread length0.799
Thread limitH3
Thread size in3/4-10
Thread standardUNC
