OSG

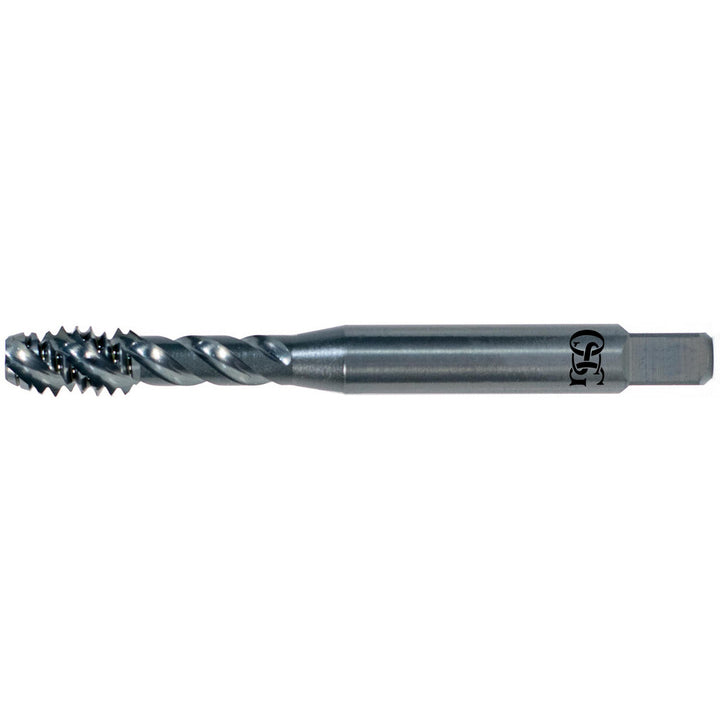

3/4-10 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2933608
MFR# 2933608Series 290
$166.31List $213.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiCN
Description
The OSG 2933608 is a 3/4-10 UNC Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)28.6
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square length0.6875
Square size0.442
Threads per inch10
Thread directionRight Hand
Thread length0.799
Thread limitH3
Thread size in3/4-10
Thread standardUNC
