OSG

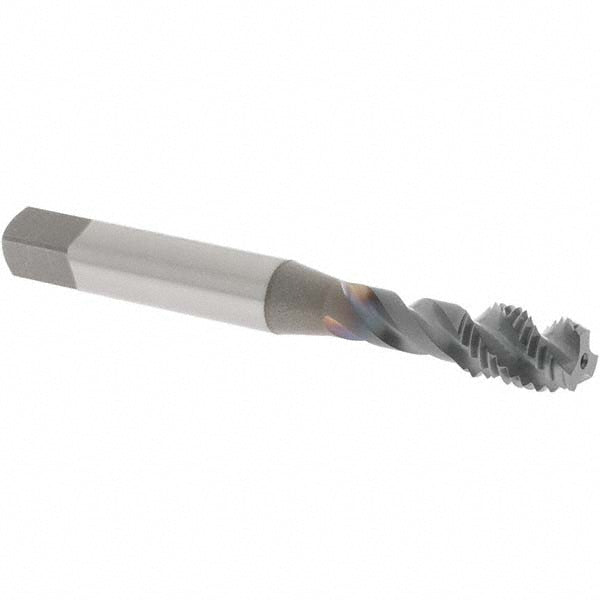

5/16-24 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 2936208
MFR# 2936208Series 290
$35.88List $46.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTiCN
Description
The OSG 2936208 is a 5/16-24 UNF Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.626
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.141
Square length0.375
Square size0.238
Threads per inch24
Thread directionRight Hand
Thread length0.444
Thread limitH4
Thread size in5/16-24
Thread standardUNF
