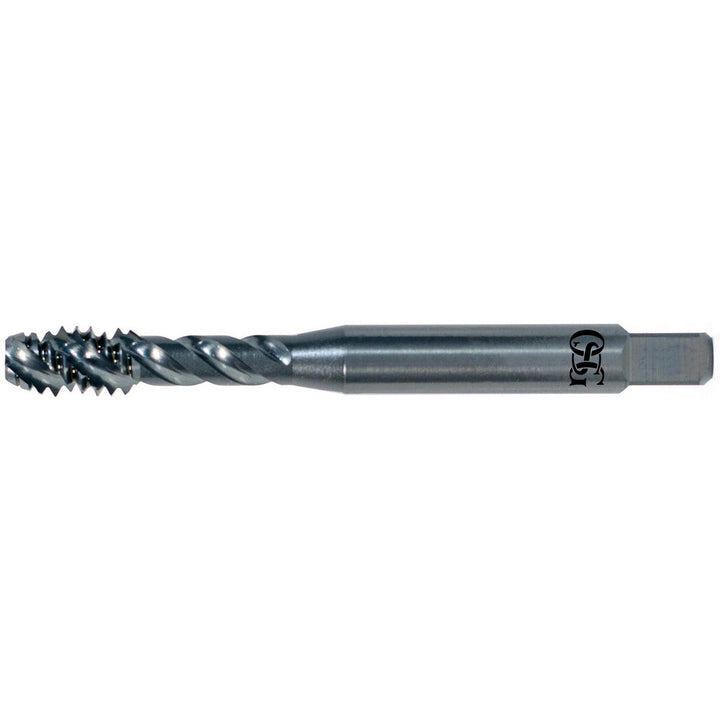

3/8-16 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2941908
MFR# 2941908Series 290
$41.71List $53.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The OSG 2941908 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length3.751968539371
Number of flutes3
Overall length in2-15/16
OversizeYes
Shank diameter1.519
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread limitH11
Thread size in3/8-16
Thread standardUNC
