OSG

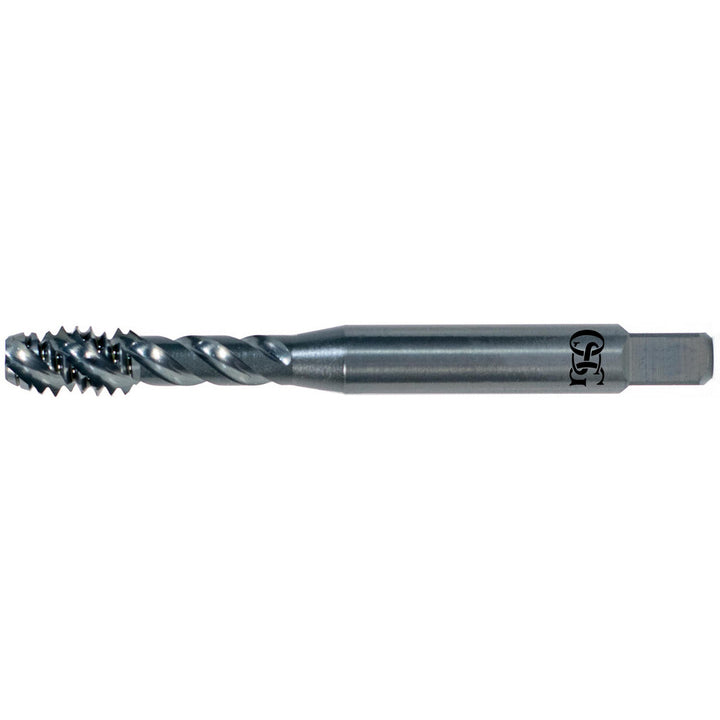

7/16-14 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2942001
MFR# 2942001Series 290
$54.40List $69.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
CoatingSteam Oxide
Description
The OSG 2942001 is a 7/16-14 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.712
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.323
Square length0.40625
Square size0.242
Threads per inch14
Thread directionRight Hand
Thread length0.57
Thread limitH5
Thread size in7/16-14
Thread standardUNC
