OSG

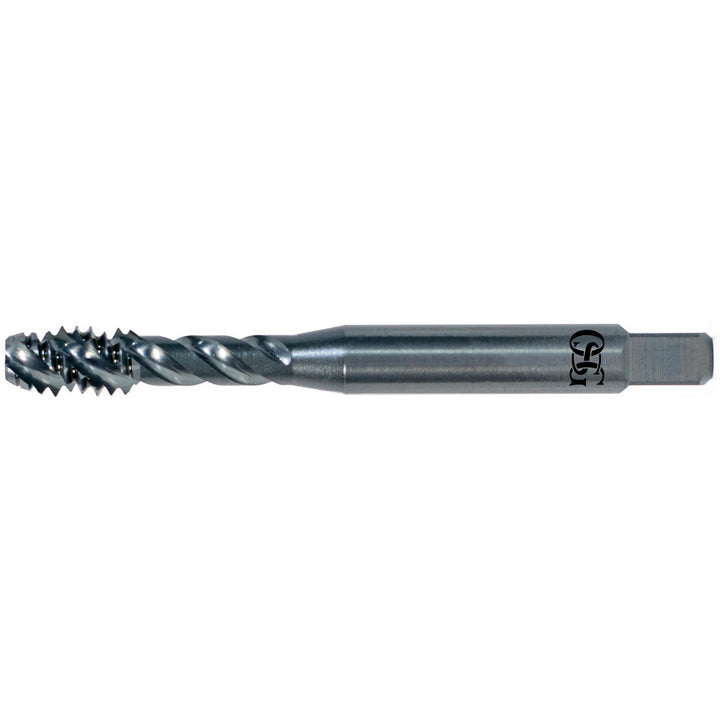

1/2-13 UNC Vanadium High-Speed Steel Tap - OSG 2942400
MFR# 2942400Series 290
$58.84List $75.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
Description
The OSG 2942400 is a 1/2-13 UNC Vanadium High-Speed Steel tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length1.9330
Number of flutes3
Overall length in3-3/8
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter0.3670
Square length0.4375
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread length0.6140
Thread limitH5
Thread size in1/2-13
Thread standardUNC
