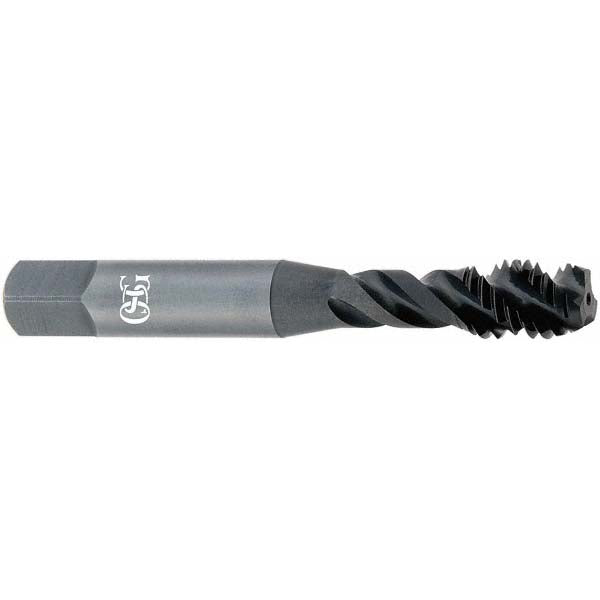

7/16-14 UNC Vanadium High-Speed Steel Tap - OSG 2943100
MFR# 2943100Series 290
$54.40List $69.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
Description
The OSG 2943100 is a 7/16-14 UNC Vanadium High-Speed Steel tap. 3 flutes.
Specifications
ChamferModified Bottoming
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length0.6180
Number of flutes3
Overall length in3-5/32
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter0.1410
Square length0.4063
Square size0.2420
Threads per inch14
Thread directionRight Hand
Thread length0.5700
Thread limitH7
Thread size in7/16-14
Thread standardUNC
