OSG

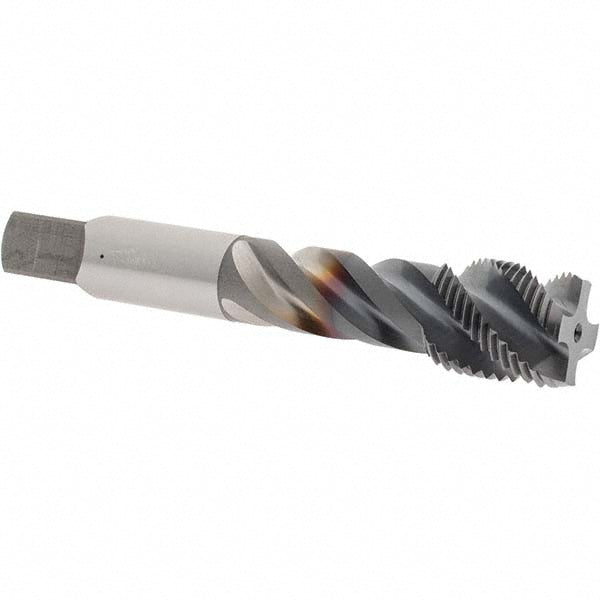

3/4-16 UNF Vanadium High-Speed Steel Tap, TiCN - OSG 2943808
MFR# 2943808Series 290
$166.31List $213.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingTiCN
Description
The OSG 2943808 is a 3/4-16 UNF Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)68.4
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square length0.6875
Square size0.442
Threads per inch16
Thread directionRight Hand
Thread length0.818
Thread limitH5
Thread size in3/4-16
Thread standardUNF
