OSG

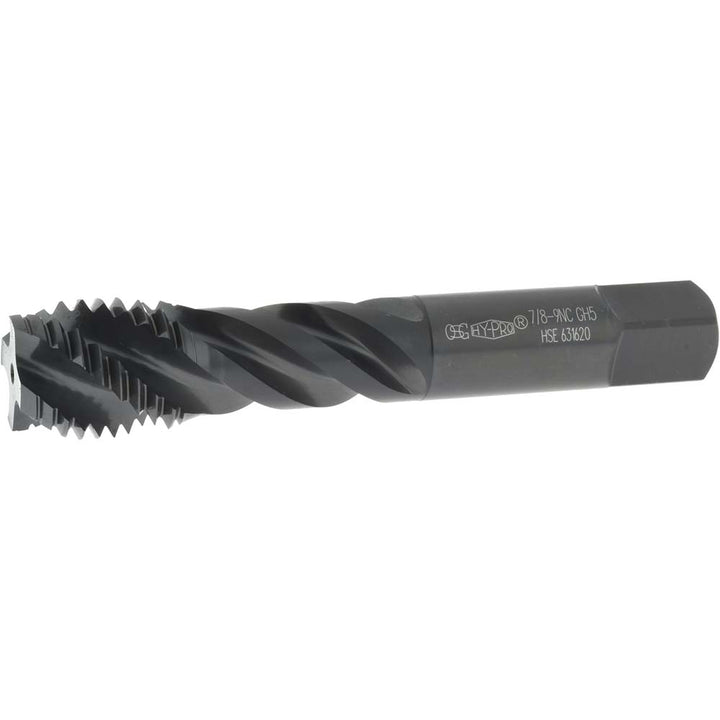

7/8-9 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2944001
MFR# 2944001Series 290
$201.68List $258.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-9
CoatingSteam Oxide
Description
The OSG 2944001 is a 7/8-9 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length2.653
Number of flutes4
Overall length in4-11/16
OversizeNo
Shank diameter0.697
Square length0.75
Square size0.523
Threads per inch9
Thread directionRight Hand
Thread length0.889
Thread limitH5
Thread size in7/8-9
Thread standardUNC
