OSG
9/16-12 UNC Vanadium High-Speed Steel Tap, TiCN - OSG 2948608
MFR# 2948608Series 290
$101.42List $130.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-12
CoatingTiCN
Description

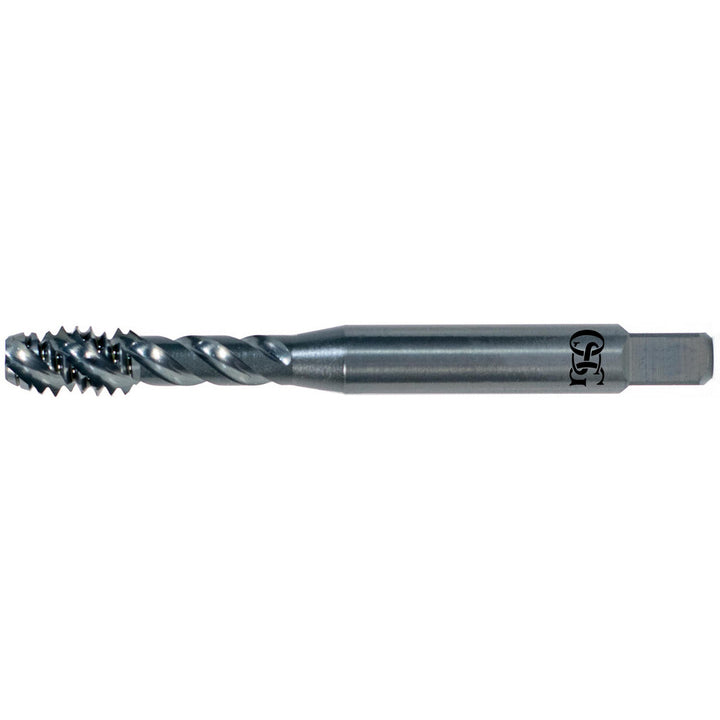

The OSG 2948608 is a 9/16-12 UNC Vanadium High-Speed Steel tap with a TiCN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)61.8
Number of flutes4
Overall length in3-19/32
OversizeNo
Shank diameter0.4290
Square length0.5
Square size0.322
Threads per inch12
Thread directionRight Hand
Thread length0.665
Thread limitH3
Thread size in9/16-12
Thread standardUNC
