OSG

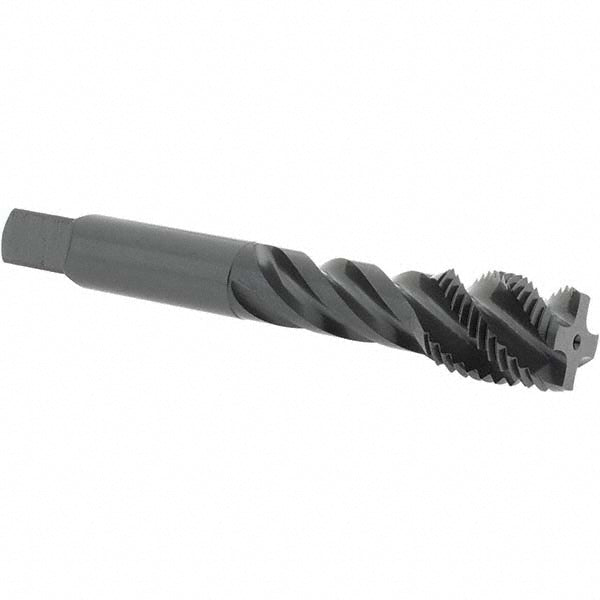

9/16-18 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2948801
MFR# 2948801Series 290
$88.56List $113.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-18
CoatingSteam Oxide
Description
The OSG 2948801 is a 9/16-18 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Material grade3% Vanadium HSS
Neck length0.826
Number of flutes4
Overall length in3-19/32
OversizeNo
Shank diameter0.168
Square length0.5
Square size0.322
Threads per inch18
Thread directionRight Hand
Thread length0.665
Thread limitH3
Thread size in9/16-18
Thread standardUNF
