OSG

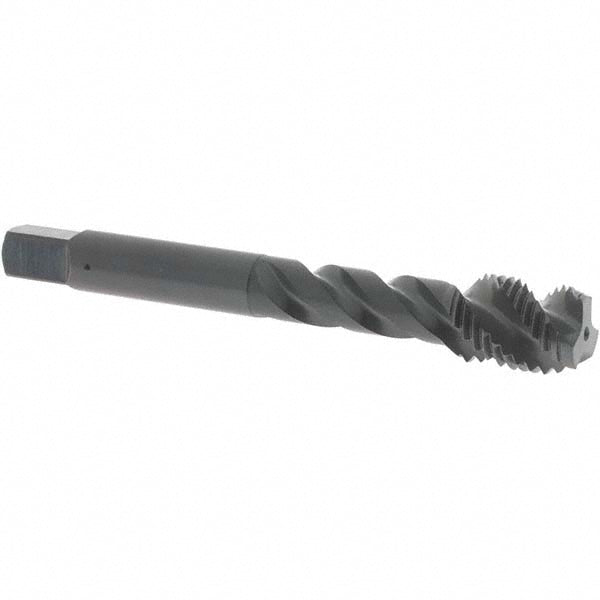

7/16-20 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2949001
MFR# 2949001Series 290
$54.40List $69.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingSteam Oxide
Description
The OSG 2949001 is a 7/16-20 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Material grade3% Vanadium HSS
Neck length0.866
Number of flutes3
Overall length in3-5/32
OversizeYes
Shank diameter0.194
Square length0.40625
Square size0.242
Threads per inch20
Thread directionRight Hand
Thread length0.57
Thread limitH7
Thread size in7/16-20
Thread standardUNF
