OSG

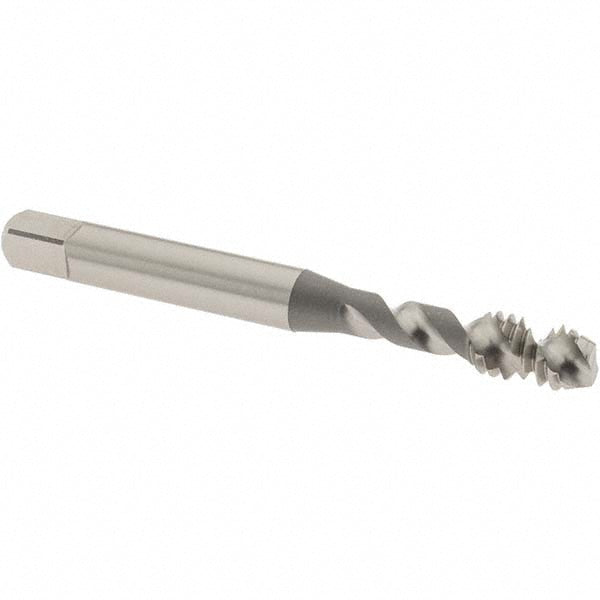

1/4-20 UNC Vanadium High-Speed Steel Tap - OSG 2955200
MFR# 2955200Series 295
$26.33List $33.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
Description
The OSG 2955200 is a 1/4-20 UNC Vanadium High-Speed Steel tap. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialVanadium High-Speed Steel
Material applicationAluminum
Neck length0.996
Number of flutes2
Overall length in2-1/2
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Threads per inch20
Thread directionRight Hand
Thread length0.397
Thread limitH5
Thread size in1/4-20
Thread standardUNC
