OSG
5/16-18 UNC Vanadium High-Speed Steel Tap - OSG 2956400
MFR# 2956400Series 295
$32.22List $41.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-18
Description

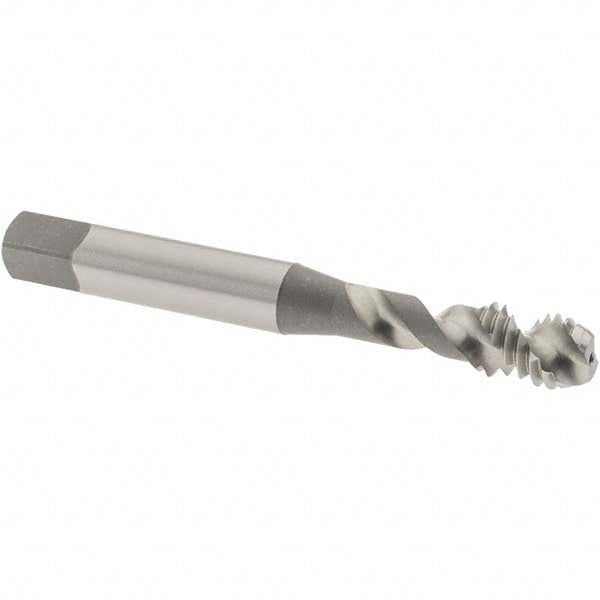

The OSG 2956400 is a 5/16-18 UNC Vanadium High-Speed Steel tap. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialVanadium High-Speed Steel
Material applicationAluminum
Neck length1.125
Number of flutes2
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Threads per inch18
Thread directionRight Hand
Thread length0.444
Thread limitH5
Thread size in5/16-18
Thread standardUNC
