OSG

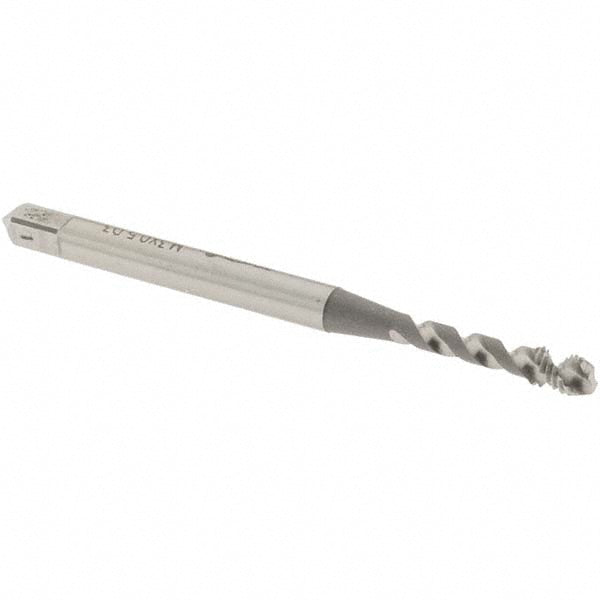

M3x0.5 M Vanadium High-Speed Steel Tap - OSG 2963300
MFR# 2963300Series 296
$36.17List $46.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 2963300 is a M Vanadium High-Speed Steel tap. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialVanadium High-Speed Steel
Material applicationAluminum
Neck length (mm)16
Number of flutes2
Overall length in1-15/16
OversizeNo
Shank diameter0.1410
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)4.1
Thread limitD3
Thread size (mm)M3x0.5
Thread standardM
