OSG

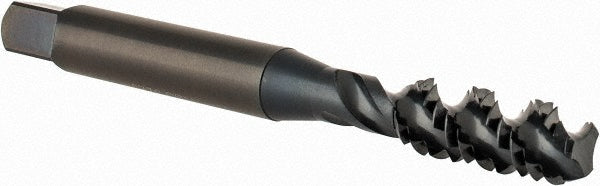

1/4-20 UNC High-Speed Steel Tap, Steam Oxide - OSG 2985601
MFR# 2985601Series 297
$17.28List $22.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingSteam Oxide
Description
The OSG 2985601 is a 1/4-20 UNC High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length0.996
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Threads per inch20
Thread directionRight Hand
Thread length0.594
Thread size in1/4-20
Thread standardUNC
