OSG

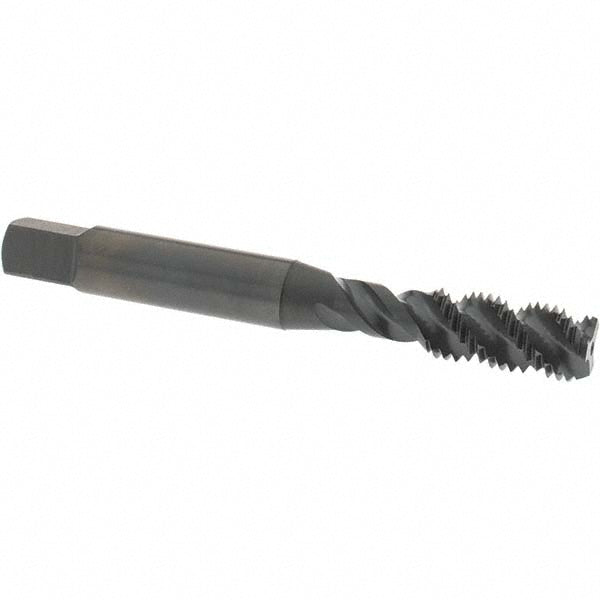

5/16-24 UNF High-Speed Steel Tap, Steam Oxide - OSG 2985901
MFR# 2985901Series 297
$21.31List $27.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingSteam Oxide
Description
The OSG 2985901 is a 5/16-24 UNF High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length1.125
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Threads per inch24
Thread directionRight Hand
Thread length0.665
Thread size in5/16-24
Thread standardUNF
