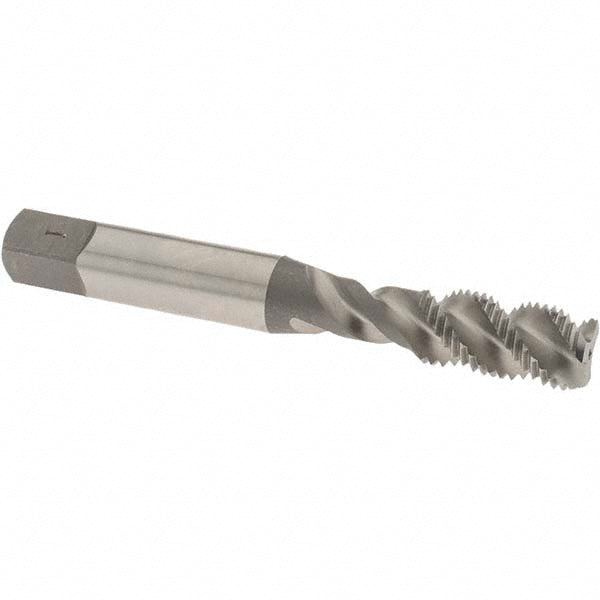

3/8-24 UNF High-Speed Steel Tap - OSG 2986100
MFR# 2986100Series 297
$24.71List $31.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
Description
The OSG 2986100 is a 3/8-24 UNF High-Speed Steel tap. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length1.251
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.751
Thread size in3/8-24
Thread standardUNF
