OSG

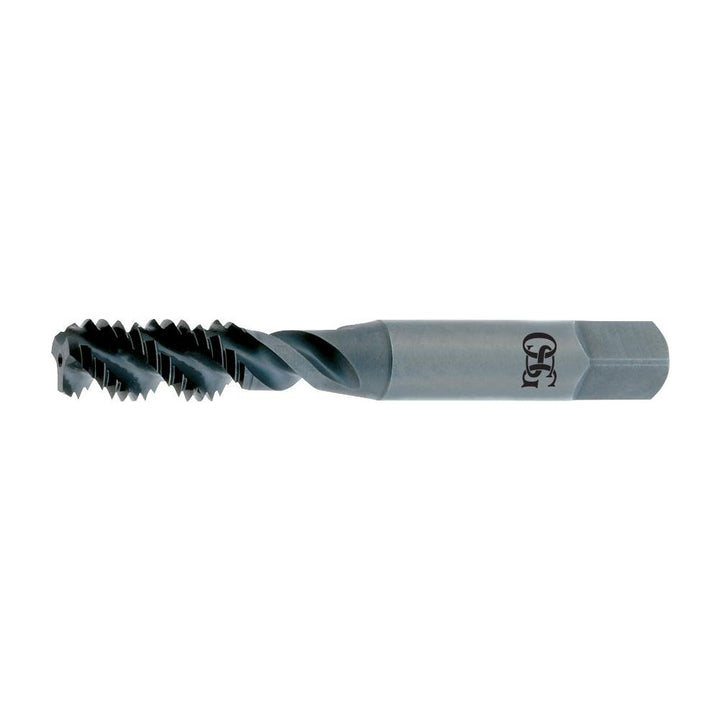

#4-48 UNF High-Speed Steel Tap - OSG 2986400
MFR# 2986400Series 297
$19.63List $25.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-48
Description
The OSG 2986400 is a #4-48 UNF High-Speed Steel tap. 2 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length0.559
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch48
Thread directionRight Hand
Thread length0.295
Thread size in#4-48
Thread standardUNF
