OSG

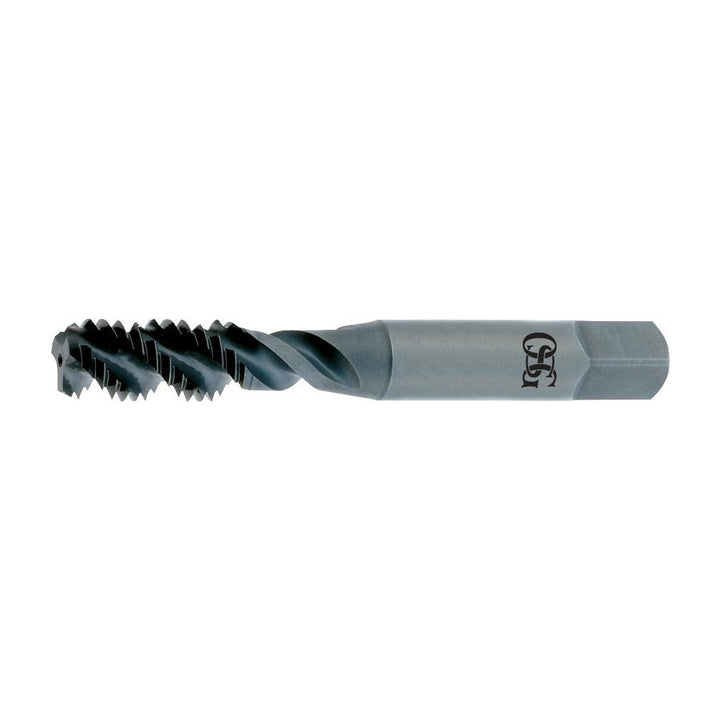

#8-36 UNF High-Speed Steel Tap - OSG 2986700
MFR# 2986700Series 297
$15.93List $20.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-36
Description
The OSG 2986700 is a #8-36 UNF High-Speed Steel tap. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length0.7510
Number of flutes3
Overall length in2-1/8
OversizeNo
Primary workpiece materialSteel; Aluminum & Non-Ferrous
Shank diameter0.1680
Square length0.2500
Square size0.1310
Threads per inch36
Thread directionRight Hand
Thread length0.3740
Thread size in#8-36
Thread standardUNF
