OSG

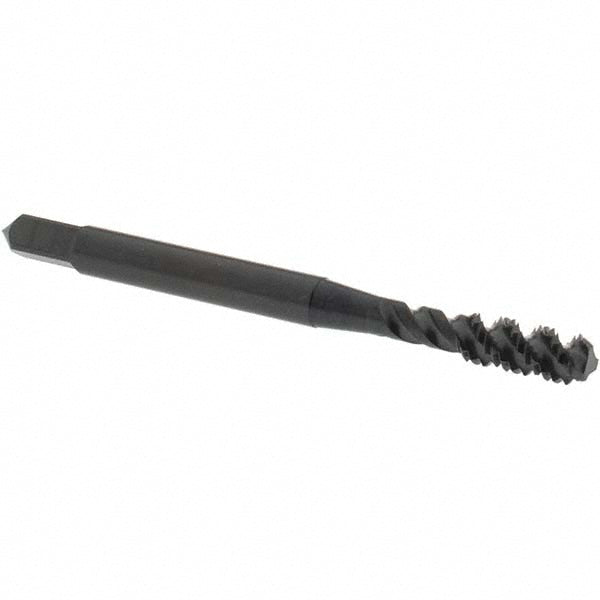

#8-36 UNF High-Speed Steel Tap, Steam Oxide - OSG 2986701
MFR# 2986701Series 297
$15.93List $20.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-36
CoatingSteam Oxide
Description
The OSG 2986701 is a #8-36 UNF High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length0.751
Number of flutes3
Overall length in2-1/8
OversizeNo
Shank diameter0.168
Square length0.25
Square size0.131
Threads per inch36
Thread directionRight Hand
Thread length0.374
Thread size in#8-36
Thread standardUNF
