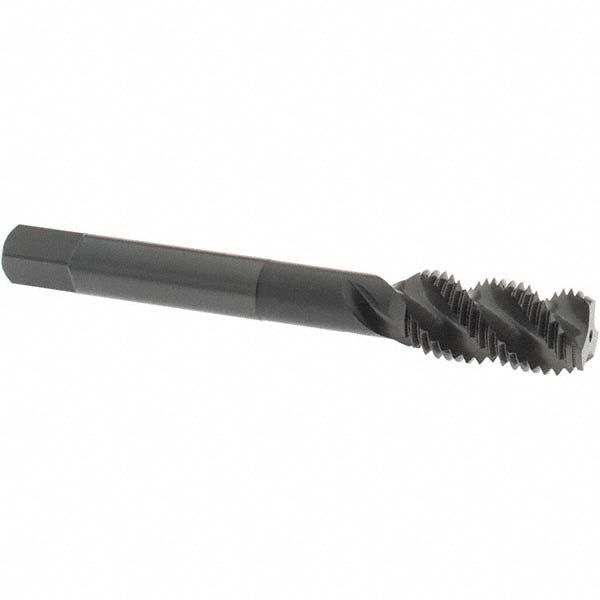

7/16-20 UNF High-Speed Steel Tap, Steam Oxide - OSG 2987001
MFR# 2987001Series 297
$36.92List $47.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingSteam Oxide
Description
The OSG 2987001 is a 7/16-20 UNF High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length1.712
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.323
Square length0.40625
Square size0.242
Threads per inch20
Thread directionRight Hand
Thread length0.858
Thread size in7/16-20
Thread standardUNF
