OSG

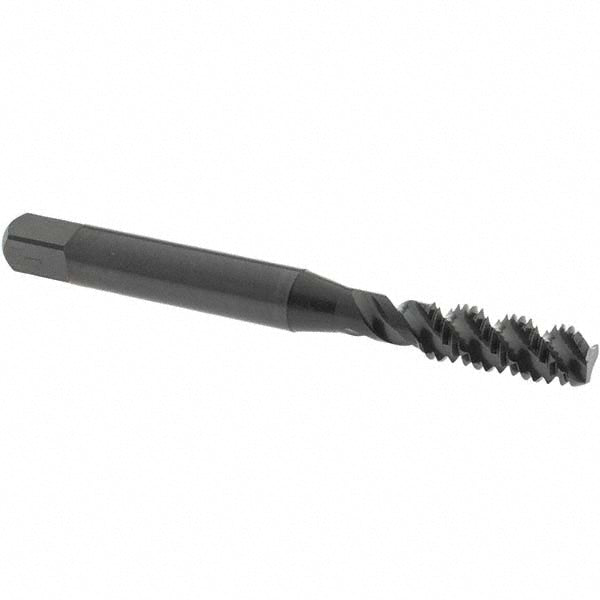

M6x1 M High-Speed Steel Tap, Steam Oxide - OSG 2988301
MFR# 2988301Series 298
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2988301 is a M High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Carbon Steel
Neck length (mm)25.4
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)15.18
Thread size (mm)M6x1
Thread standardM
