OSG

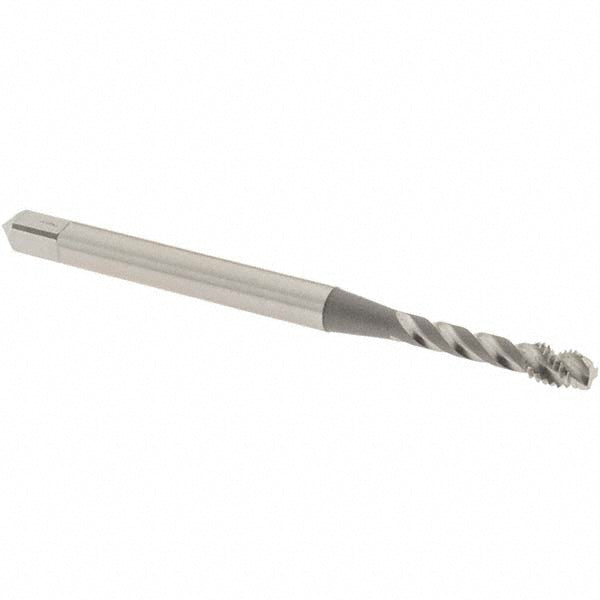

M3x0.5 M Vanadium High-Speed Steel Tap - OSG 2990400
MFR# 2990400Series 299
$36.13List $46.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The OSG 2990400 is a M Vanadium High-Speed Steel tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)16
Number of flutes3
Overall length in1-15/16
OversizeNo
Shank diameter0.1410
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)4.8
Thread limitD3
Thread size (mm)M3x0.5
Thread standardM
