OSG

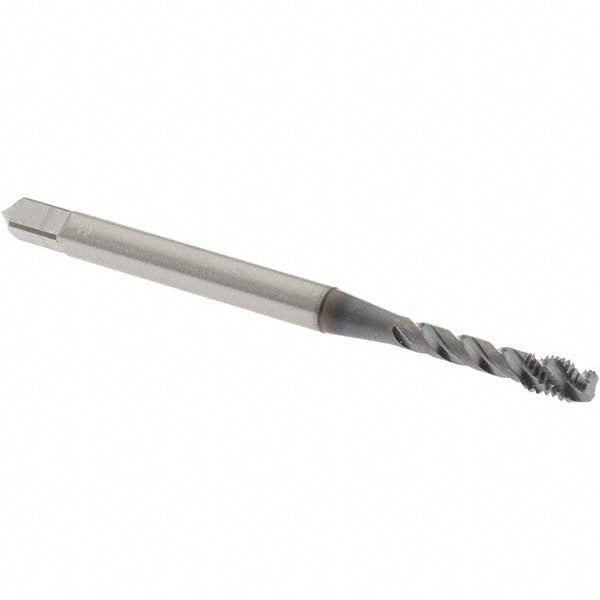

M3x0.5 M Vanadium High-Speed Steel Tap, TiCN - OSG 2990408
MFR# 2990408Series 299
$35.24List $45.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 2990408 is a M Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)16
Number of flutes3
Overall length in1-15/16
Shank diameter0.1410
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)4.8
Thread limitD3
Thread size (mm)M3x0.5
Thread standardM
