OSG

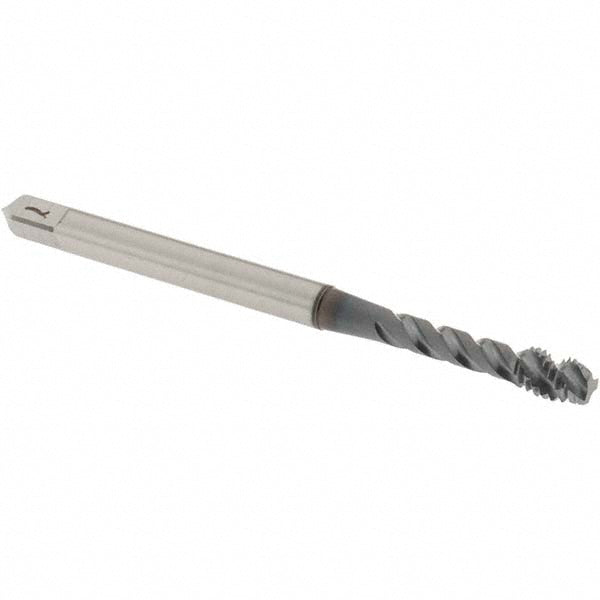

M3.5x0.6 M Vanadium High-Speed Steel Tap, TiCN - OSG 2990508
MFR# 2990508Series 299
$35.02List $44.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The OSG 2990508 is a M Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)17.5
Number of flutes3
Overall length in2
Shank diameter0.1410
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)4.8
Thread limitD4
Thread size (mm)M3.5x0.6
Thread standardM
