OSG
M4x0.70 Metric Vanadium High-Speed Steel Tap, TiCN - OSG 2990608
MFR# 2990608Series 299
$32.94List $42.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description

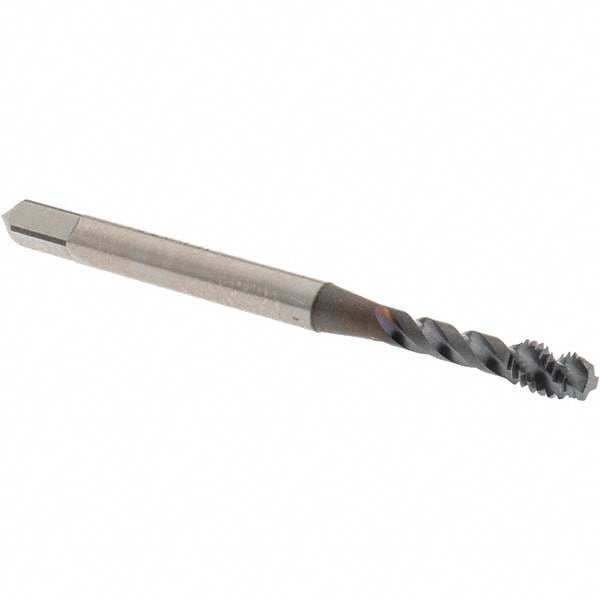

The OSG 2990608 is a Metric Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)19.10
Number of flutes3
Overall length in2-1/8
Shank diameter0.1680
Square length (mm)6.35
Thread directionRight Hand
Thread length (mm)4.80
Thread limitD4
Thread size (mm)M4x0.70
Thread standardMetric
