OSG

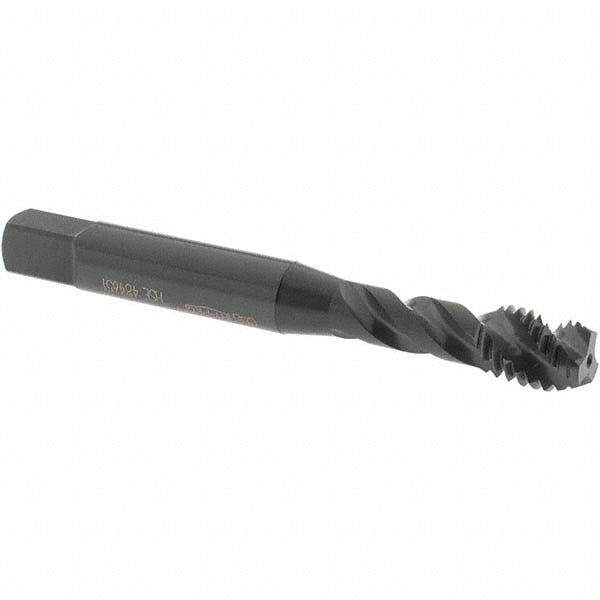

M8x1.25 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2991401
MFR# 2991401Series 299
$36.13List $46.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2991401 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)28.6
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)1
Thread limitD5
Thread size (mm)M8x1.25
Thread standardM
