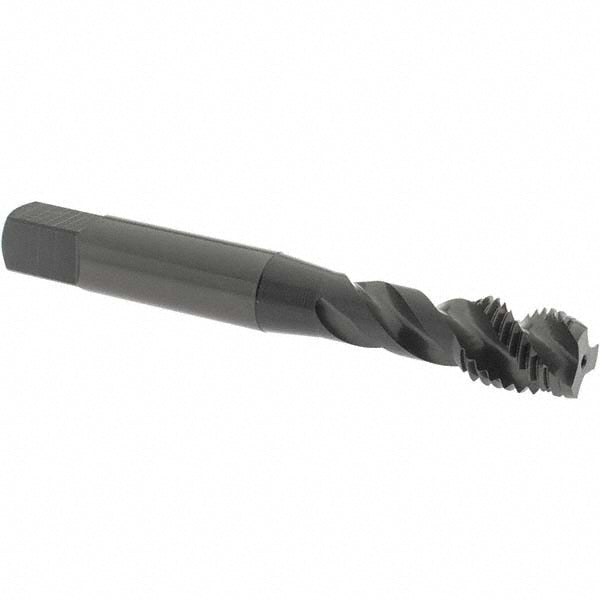

M10x1.25 MF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2991701
MFR# 2991701Series 299
$50.97List $65.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2991701 is a MF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)31.8
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)11.98
Thread limitD5
Thread size (mm)M10x1.25
Thread standardMF
