OSG
M10x1.5 M Vanadium High-Speed Steel Tap, TiCN - OSG 2991808
MFR# 2991808Series 299
$58.34List $74.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description

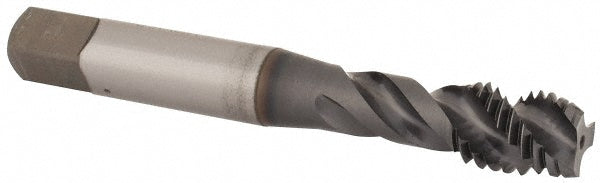

The OSG 2991808 is a M Vanadium High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)31.8
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)11.98
Thread limitD6
Thread size (mm)M10x1.5
Thread standardM
