OSG

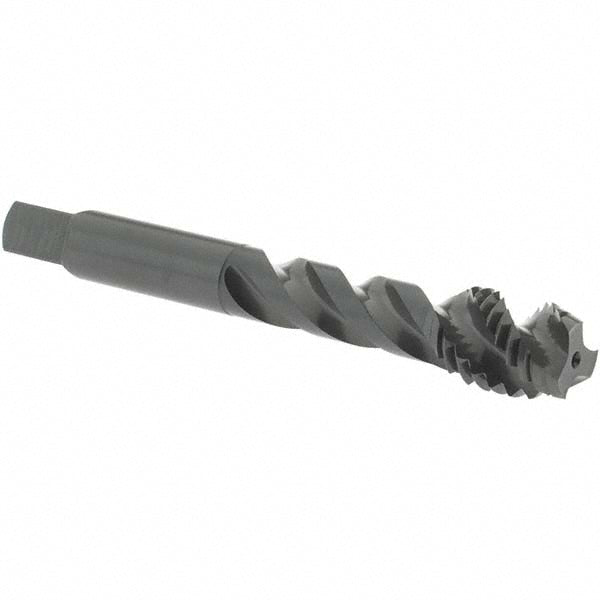

M12x1.75 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2992301
MFR# 2992301Series 299
$61.38List $78.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2992301 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)49.9
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)13.99
Thread limitD6
Thread size (mm)M12x1.75
Thread standardM
