OSG

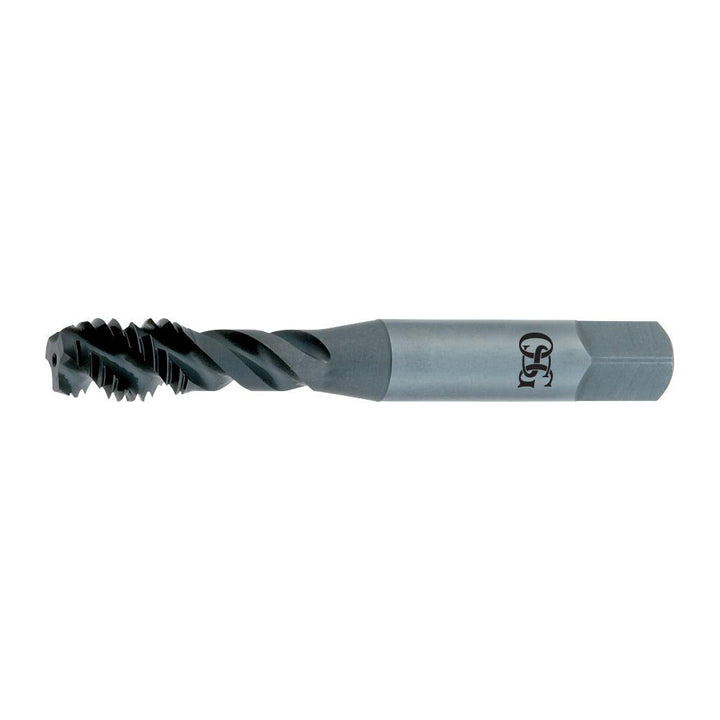

M18x2.5 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2993201
MFR# 2993201Series 299
$157.43List $201.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingSteam Oxide
Description
The OSG 2993201 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)54.99
Number of flutes4
Overall length in4-1/32
OversizeNo
Shank diameter0.5420
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)19.98
Thread limitD7
Thread size (mm)M18x2.5
Thread standardM
