M22x2.5 Metric Coarse Tap, Steam Oxide - OSG 2994001

OSG

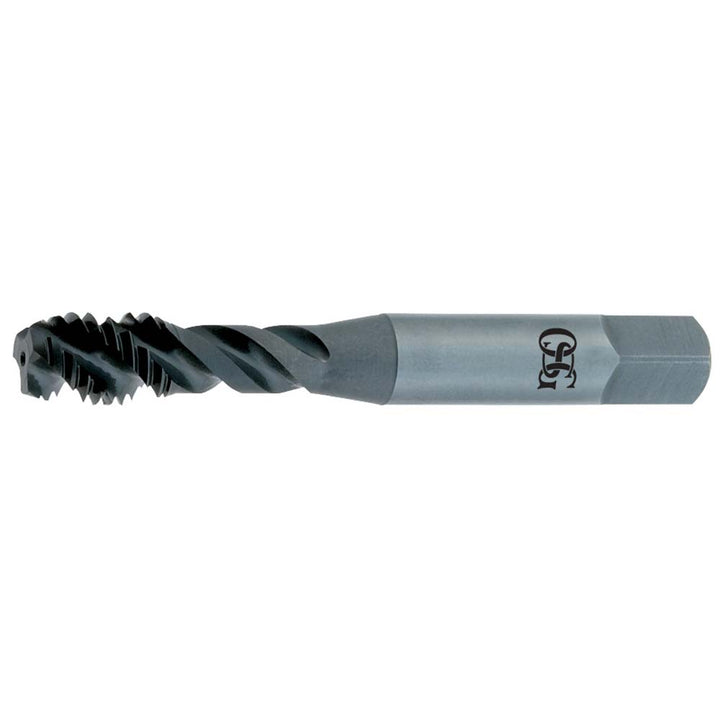

M22x2.5 Metric Coarse Tap, Steam Oxide - OSG 2994001

MFR# 2994001Series 299

$180.00List $230.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
CoatingSteam Oxide

Description

The OSG 2994001 is a Metric Coarse tap with a Steam Oxide finish. 4 flutes.

Specifications

ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel; Die Steel
Neck length67.41
Number of flutes4
Overall length (mm)119.10
Shank diameter (mm)17.738
Square length (mm)19.05
Square size (mm)13.2842
Thread directionRight Hand
Thread length (mm)19.98
Thread limitD8
Thread size (mm)M22x2.5
Thread standardMetric Coarse
