OSG

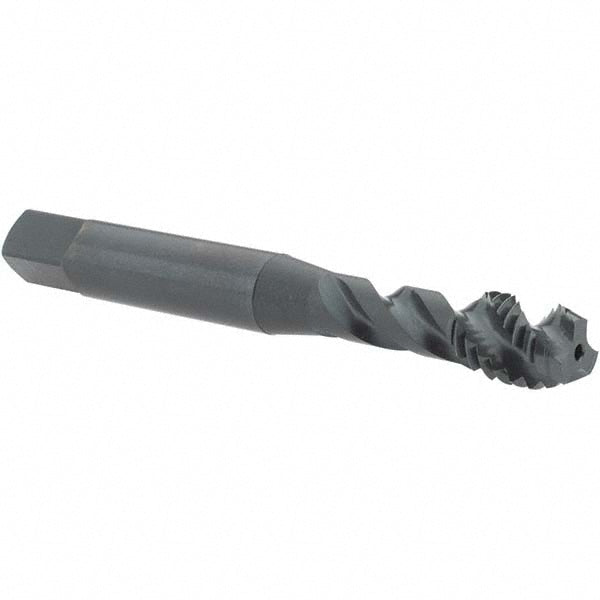

M Tap, Steam Oxide - OSG 2994501
MFR# 2994501Series 299
$36.13List $46.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2994501 is a M tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Stainless Steel; Die Steel; Hardened Steel
Neck length (mm)28.6
Number of flutes3
Overall length (mm)69.1
Shank diameter (mm)8.772
Square length0
Square size0
Threads per inch0
Thread length (mm)1
Thread limitD11
Thread standardM
