OSG

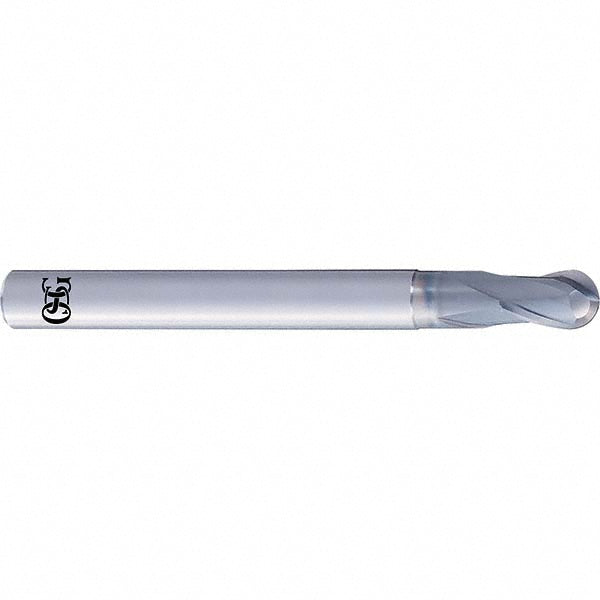

0.0787" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 3042003
MFR# 3042003Series 8510
$40.28List $51.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingDUROREY
Description
The OSG 3042003 is a 0.0787 2-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. Series 8510.
Specifications
Additional information2-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels
ChipbreakerNo
Coating finishDUROREY
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle25
Helix styleMedium
Length of cut (mm)1.60mm
Length typeExtended
Manufacturers catalog number3042003
Material removal typeRoughing & Finishing
Mill diameter0.0787
Mill diameter tolerance0.005 mm
Neck diameter (mm)1.95
Neck length12.0000
Nose radius (mm)1.00
Number of flutes2
Overall length (mm)50.00mm
Primary workpiece materialHard Material
Reach length (mm)12.00
Secondary workpiece materialSteel
Shank diameter (mm)6.00mm
Shank diameter toleranceh4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
