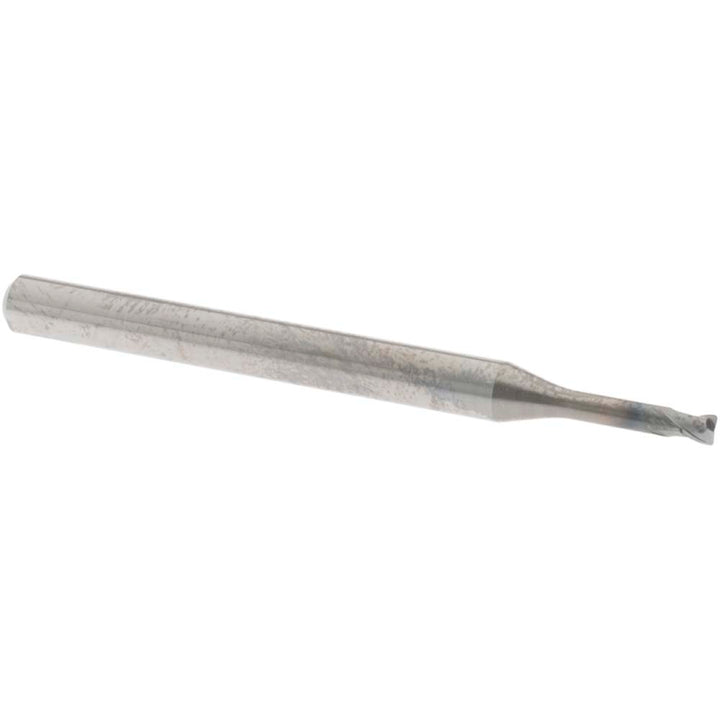

0.0787in" 2-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 3102008

OSG

0.0787in" 2-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 3102008

MFR# 3102008Series 4592

$85.88List $110.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingWXS

Description

The OSG 3102008 is a 0.0787in 2-flute Solid Carbide corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, hard material. Series 4592.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishWXS
Coolant throughNo
Corner radius0.0079
Corner radius tolerance5 to -5 um
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut1.0000in
Length typeStub
Material applicationSteel; Stainless Steel; Hard Material
Material removal typeRoughing
Mill diameter0.0787in
Mill diameter tolerance0.00/-0.01 mm
Neck diameter (mm)1.95
Number of flutes2
Overall length (mm)50.00mm
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Hard Material
Reach length (mm)10.00
Shank diameter (mm)4.00mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
