OSG
7/16-14 UNC Solid Carbide Machine Tap, TiCN - OSG 3111208
MFR# 3111208Series 311
$364.85List $467.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size7/16-14
CoatingTiCN
Description

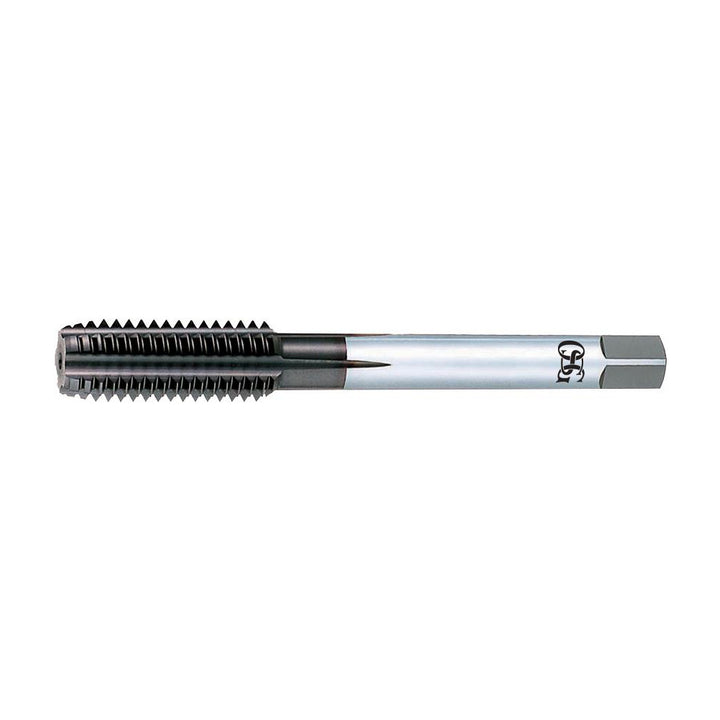

The OSG 3111208 is a 7/16-14 UNC Solid Carbide Machine tap with a TiCN finish. 5 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialSolid Carbide
Material applicationHardened Steel
Number of flutes5
Overall length3.9370
OversizeNo
Shank diameter0.323
Square length0.40625
Square size0.242
Tap typeMachine
Threads per inch14
Thread directionRight Hand
Thread length in1-7/16
Thread size in7/16-14
Thread standardUNC
