OSG

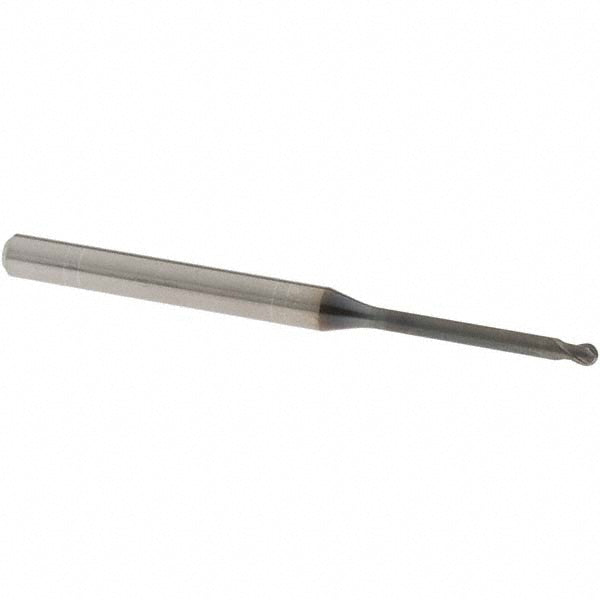

0.0787" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 3112120
MFR# 3112120Series 3790
$74.16List $95.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingWXL
Description
The OSG 3112120 is a 0.0787 2-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXL finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series 3790.
Specifications
Additional informationExocarb® WXL High Performance End Mills For Pre-Hardened &Amp; Hardened Steels.
ChipbreakerNo
Coating finishWXL
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut (mm)1.60mm
Length typeExtended
Manufacturers catalog number3112120
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter0.0787
Neck diameter (mm)1.95
Neck length (mm)18.40
Nose radius (mm)1.00
Number of flutes2
Overall length (mm)55.00mm
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length (mm)20.00
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
Shank diameter (mm)4.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
