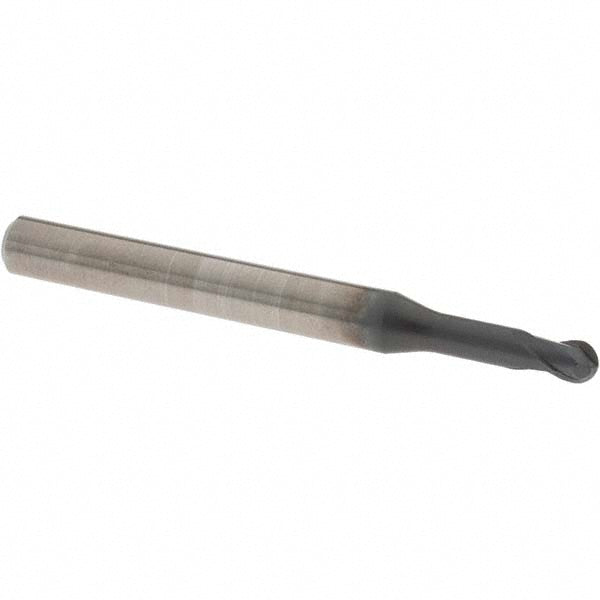

0.1575" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 3124116

MFR# 3124116Series 3790

$98.51List $126.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingWXL

Description

The OSG 3124116 is a 0.1575 2-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXL finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series 3790.

Specifications

Additional informationExocarb® WXL High Performance End Mills For Pre-Hardened &Amp; Hardened Steels.

ChipbreakerNo

Coating finishWXL

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut (mm)3.20mm

Length typeExtended

Manufacturers catalog number3124116

Material gradeUltra Fine Micrograin

Material removal typeRoughing & Finishing

Mill diameter0.1575

Neck diameter (mm)3.85

Neck length (mm)12.80

Nose radius (mm)2.00

Number of flutes2

Overall length (mm)60.00mm

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length (mm)16.00

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium

Shank diameter (mm)6.00mm

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
