OSG

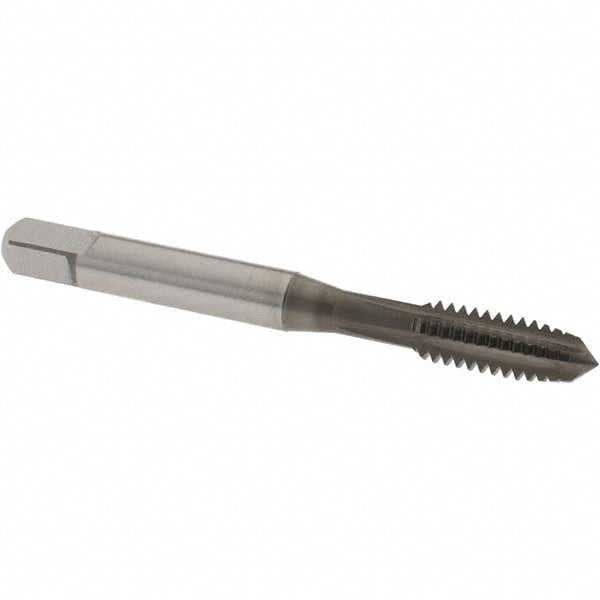

1/4-20 UNC Cobalt Standard Tap, Nitride - OSG 3147803
MFR# 3147803Series 114
$11.46List $14.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
CoatingNitride
Description
The OSG 3147803 is a 1/4-20 UNC Cobalt Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialCobalt
Material applicationPlastic
Neck length0.9966
Number of flutes4
Overall length in1
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length0.594488188976378
Thread size in1/4-20
Thread standardUNC
