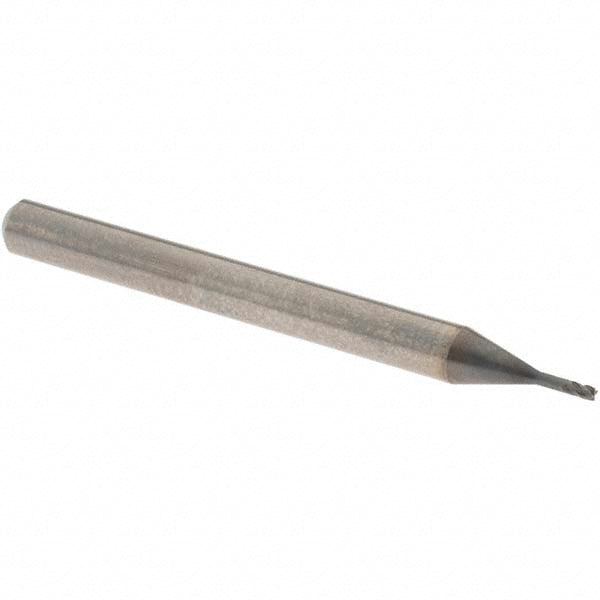

0.0394" 4-Flute Solid Carbide Square End Mill, WXL - OSG 3172004

OSG

0.0394" 4-Flute Solid Carbide Square End Mill, WXL - OSG 3172004

MFR# 3172004

$78.61List $100.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWXL

Description

The OSG 3172004 is a 0.0394 4-flute Solid Carbide (Micrograin) square end mill with a WXL finish for longer tool life. 0.0591 length of cut.

Specifications

CentercuttingYes
Coating finishWXL
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Helix angle35
Length of cut0.0591
Length of cut range0.0000 - 0.1000
Material gradeMicrograin
Mill diameter0.0394
Number of flutes4
Overall length (mm)45
Reach length (mm)4
Shank diameter0.1575
Variable helixNo
Variable indexNo
