OSG

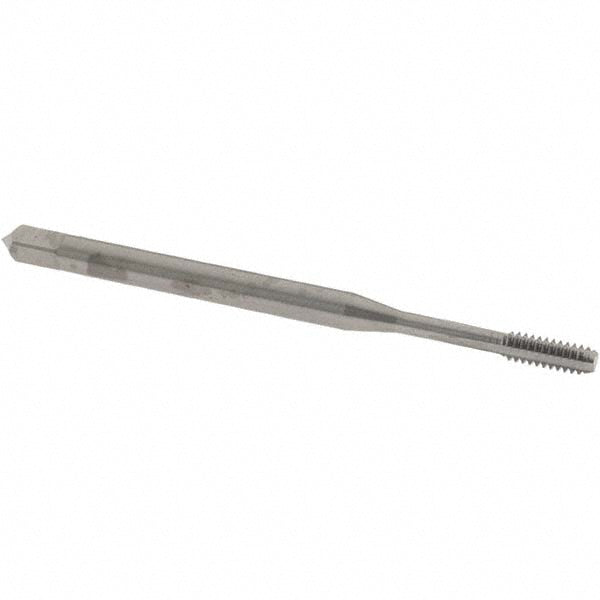

#4-40 UNC Solid Carbide Machine Tap - OSG 3190000
MFR# 3190000Series 319
$118.92List $152.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
Description
The OSG 3190000 is a #4-40 UNC Solid Carbide Machine tap. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coolant throughNo
MaterialSolid Carbide
Material applicationAluminum; Cast Aluminum; Cast Iron
Neck length0.7400
Number of flutes3
Overall length2.2050
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Tap typeMachine
Threads per inch40
Thread directionRight Hand
Thread length in9/16
Thread size in#4-40
Thread standardUNC
