0.0315" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 3190800

OSG

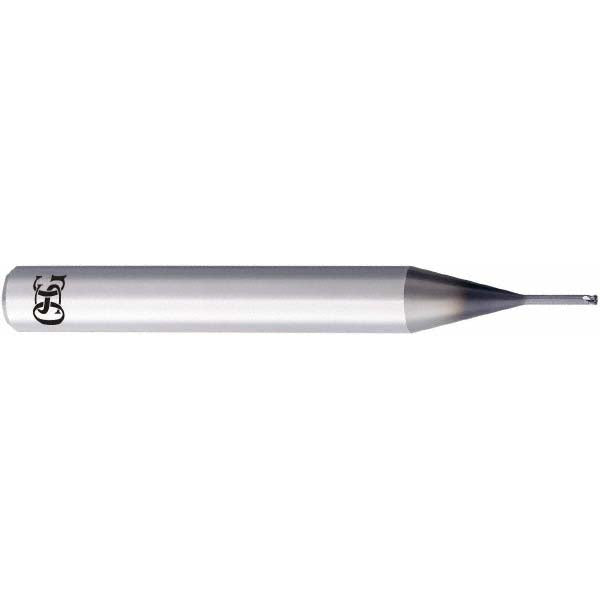

0.0315" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 3190800

MFR# 3190800Series 9592

$173.37List $218.49 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWXS

Description

The OSG 3190800 is a 0.0315 4-flute Solid Carbide corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series 9592.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishWXS
Coolant throughNo
Corner radius0.0039
Corner radius tolerance0.01 to -0.01 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleMedium
Length of cut1.5000
Length typeStub
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material removal typeRoughing & Finishing
Mill diameter0.0315
Mill diameter tolerance0.00 to -0.01 mm
Neck diameter0.7500
Number of flutes4
Overall length (mm)50.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length (mm)2.00
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
